Picture and fixed windows are the non-operable workhorses of Florida coastal design. They don’t open, and that’s exactly the point. A single laminated impact glass panel framed cleanly in aluminum or vinyl gives you an unobstructed sightline to the water, the palms, the sky, with no mullions or moving parts to interrupt it. In West Palm Beach, where homes are built around views and tested by hurricanes, these panels do two jobs at once: they hold the opening secure under impact, and they let the light pour in. TruePane Windows & Doors installs picture and fixed impact windows across West Palm Beach, Palm Beach, and the surrounding coastal corridor. Call (561) 264-1279 to talk about your project.

Call (561) 264-1279

Product Overview - Picture & Fixed Windows

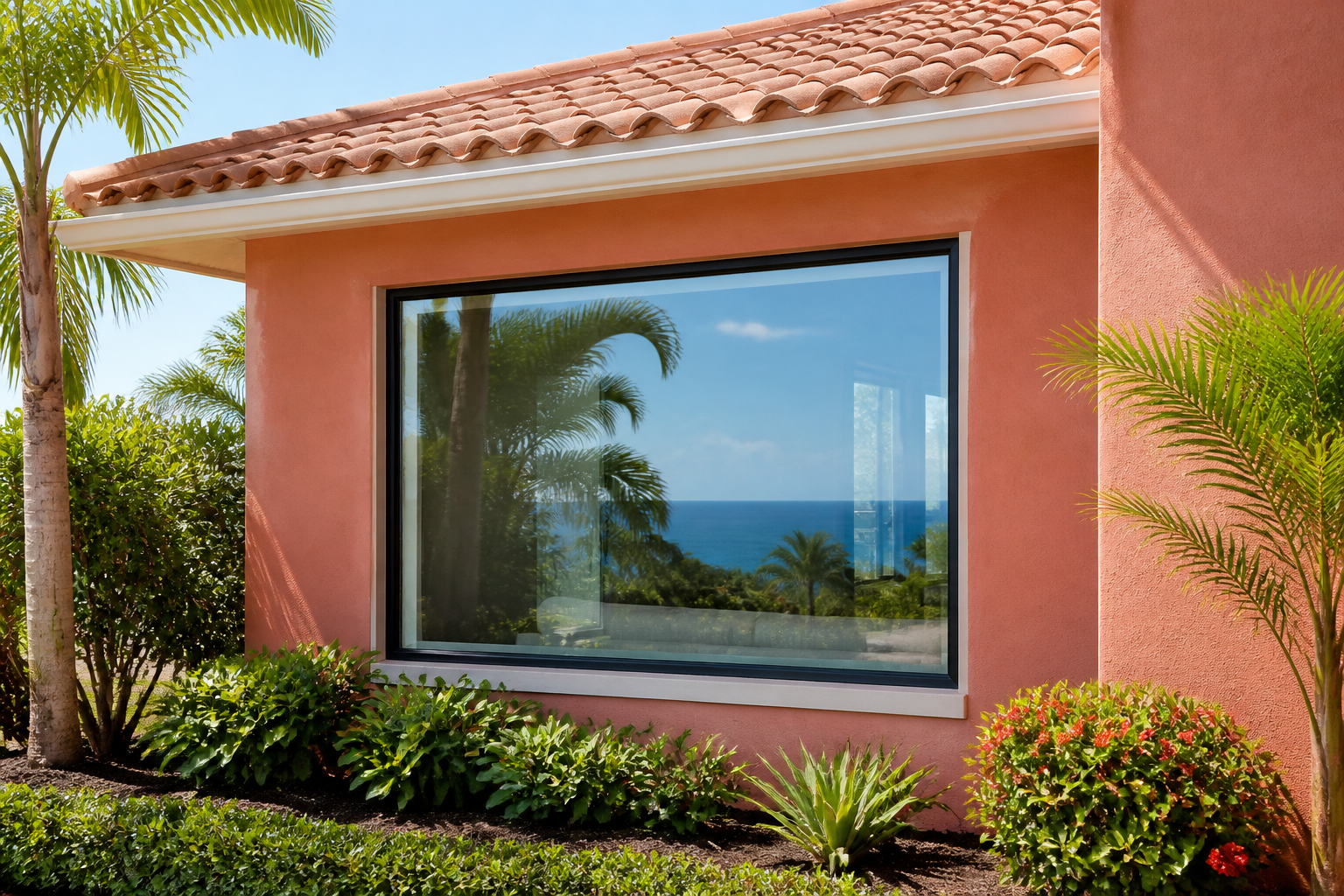

A picture window is a fixed glass panel that doesn’t open, tilt, or slide. The frame is sealed, the sash is absent, and the glass runs edge to edge. For homes in West Palm Beach, that simplicity is a structural advantage. Fewer moving parts means fewer points where wind-driven rain can get in during a storm, and fewer mechanisms to fail after years of salt air and humidity.

These windows are built around laminated impact glass with a PVB interlayer. When something hits the glass, the interlayer holds the broken pieces in the frame instead of letting them blow into the room. That’s the distinction between an impact window and standard glass, and it’s why this profile is the default choice for hurricane-prone construction across Palm Beach County.

Architecturally, picture windows anchor the design. You’ll see them as the centerpiece of a living room facing the Intracoastal, a floor-to-ceiling run in a modern downtown condo, or a wide transom above operable casements. They’re often flanked by operable units on either side for ventilation, with the fixed panel carrying the biggest view. TruePane Windows & Doors installs these across our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, so the system can be matched to your home’s existing look or an entirely new design.

For West Palm Beach homes, the fixed panel isn’t just a window. It’s the part of the wall that does the hardest work without moving at all. Call (561) 264-1279 to discuss sizing and configuration.

Technical Specifications

Picture and fixed windows from TruePane Windows & Doors are configured per opening, per wind zone, per home. Here’s what we work with:

• Frame materials: Aluminum or vinyl. Aluminum is the go-to for larger openings and thinner sightlines. Vinyl suits smaller to mid-size fixed panels where thermal performance matters more.
• Maximum size: Up to 120 inches wide, depending on design pressure requirements for your specific wind zone in the West Palm Beach area.
• Glass options: Laminated impact glass with a PVB interlayer, Low-E insulated glass, tinted glass, or clear glass. You can combine Low-E with laminated impact glass for impact protection plus energy performance.
• Finish options: White, Almond, Bronze, Black, and Tan across the lines we install.
• Compliance: Miami-Dade NOA and Florida Product Approval numbers are available per configuration, issued for the specific glass, frame, and size combination you order. Engineered to Florida Building Code High-Velocity Hurricane Zone requirements.

Design pressures are matched to your wind zone, up to +/-100, and never higher than what the opening actually needs. That’s a deliberate spec. You don’t pay for a rating you don’t require, and you don’t get a window underbuilt for its location.

Hurricane & Compliance Performance

Here’s how a Picture & Fixed Window actually performs when a storm rolls toward West Palm Beach. Each spec below matters for a different reason, and together they’re what makes the assembly code-compliant for this region.

Laminated Impact Glass

The glass is built with a polyvinyl butyral interlayer sandwiched between two lites. Under impact, the glass may crack but it stays in the frame. That’s the entire point. The window keeps the building envelope sealed so wind pressure doesn’t enter the home and lift the roof.

Miami-Dade NOA / Florida Product Approval

Every configuration TruePane Windows & Doors installs in West Palm Beach carries a Notice of Acceptance or Florida Product Approval number. These are issued per configuration, for the exact glass, frame, and size you’re ordering. We verify the specific number on your quote before you commit to anything.

FBC / HVHZ Compliance

The entire assembly is engineered to Florida Building Code High-Velocity Hurricane Zone requirements. HVHZ is the strictest wind-borne debris region in the state, and it applies throughout Palm Beach County. This isn’t optional product language. It’s what your permit reviewer checks.

TAS 201 / 202 / 203 Testing Context

HVHZ-rated products are tested under a specific protocol family: TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. When a configuration carries an NOA, those are the test standards behind it.

Design Pressure for Your Wind Zone

We match design pressures to your specific wind zone, up to +/-100, and never higher. A window rated for a stronger zone than your home needs costs more without adding benefit. A window under-rated for your zone won’t pass permit review. We get the number right the first time.

Energy Performance

Low-E and insulated glass options are available for the fixed panels we install in West Palm Beach. A west-facing picture window with Low-E cuts afternoon heat gain substantially. Tinted glass does similar work with a darker aesthetic. You can have impact protection and energy performance in the same lite.

Color & Glass Options

The finish selection on a picture window is more important than on any operable unit, because there’s no sash, no hardware, and no screen to break up the frame. The color is the entire visual statement. For West Palm Beach homes, we see certain patterns repeat.

White and Almond dominate South Florida’s Mediterranean and Spanish-style homes, matching stucco exteriors and standing up visually against barrel tile roofs. Bronze and Black have become the choice for modern coastal designs, where a dark frame reads as architecture rather than trim. Tan sits between those worlds, a warm neutral that works well on mid-century and ranch-style homes in neighborhoods like Flamingo Park and Sunshine Park.

Glass selection follows the room’s exposure. Clear laminated impact glass preserves the truest color of the view, which is what you want facing the Intracoastal. Low-E insulated glass is the practical choice for south and west exposures, where heat gain in August is real. Tinted glass suits rooms with glare problems, home theaters, or west-facing bedrooms. Any of these can be laminated for impact. The choices aren’t either-or.

Installation by TruePane Windows & Doors in West Palm Beach

A NOA-rated window installed badly is just a hole in the wall with paperwork. The product’s rating assumes it’s installed exactly as engineered, and in West Palm Beach, the permitting office expects to see that alignment. We’ve handled hundreds of HVHZ installs across Palm Beach County, and our process is built around the code, not around speed.

Every installation starts with a pre-install inspection of the opening. We measure the rough opening, check the condition of the surrounding framing, look for signs of moisture intrusion, and verify the substrate the new window will anchor to. If there’s rot or prior leakage, it gets addressed before the new unit goes in. You can’t flash over a bad opening and expect it to hold.

Then the unit goes in level, plumb, and square. For a fixed panel, square matters more than anyone expects. A window out of square binds the glass stress unevenly, and over years of thermal cycles and wind loading, that stress works against the frame’s integrity. We don’t rush that part.

The perimeter is sealed with AAMA 812 low-expansion foam, which fills the gaps without bowing the frame. On an HVHZ-rated opening, the foam is part of the system, not an afterthought. The entire installation follows AAMA 2400/2410 practice, which is the standard reference for installing fenestration products in this region.

We finish with a water test on the exterior, a cleanup inside and out, and we walk you through what was installed and how the opening is protected. For West Palm Beach specifically: coastal exposure means we account for salt air and its effect on fasteners and flashing, wind zone determines the anchoring schedule, and the permitting authority may require the NOA or Florida Product Approval documentation before final inspection. We provide the right paperwork for your specific configuration.

Improper installation compromises the NOA-rated system. That’s not a sales line. It’s the reason the permit process exists. Call (561) 264-1279 to have your openings looked at by a West Palm Beach installer who does this every week.

Frequently Asked Questions - Picture & Fixed Windows

Get a Quote - Picture & Fixed Windows in West Palm Beach

Whether you’re replacing one large fixed panel or planning a full coastal renovation, start with a free on-site measurement. We’ll size the openings, confirm design pressures for your wind zone, and give you a written quote with the exact NOA or Florida Product Approval numbers for your configuration. Call (561) 264-1279 to schedule your free estimate in West Palm Beach.
